Double jacketed gaskets

Single or Double JACKETED GASKETS
Gaskets of any size, diameter, pressure rating and shape

TYPES:
Single jacketed Gaskets
Double jacketed Gaskets
a) Plain MetalClad b) Corrugated Metal Card

MATERIALS OF CONSTRUCTION:
Filler material: Asbestos, Graphite and Ceramic
Jacketing material: CRCA,ss304, 316,316L
Monel, Inconel, Aluminum, Copper, Brass etc

STANDARDS: ASME B16,20/ as per customer specification.

Double Jacketed Gasket  is made from metallic clad graphite, PTFE, ceramic fiber, non-asbestos etc.
Double jacketed gaskets filler covered with thin metal jacket, such as stainless steel(SS304, SS316, SS321, SS410 etc), carbon steel, copper etc. By their sealing efficiently, provide outstanding resilience, while the metal jacket guarantees excellent sealing and protects the filler against pressure conditions, fluctuating temperatures and corrosion.

Double Jacketed Plain Gasket
Double Jacketed corrugated Gasket

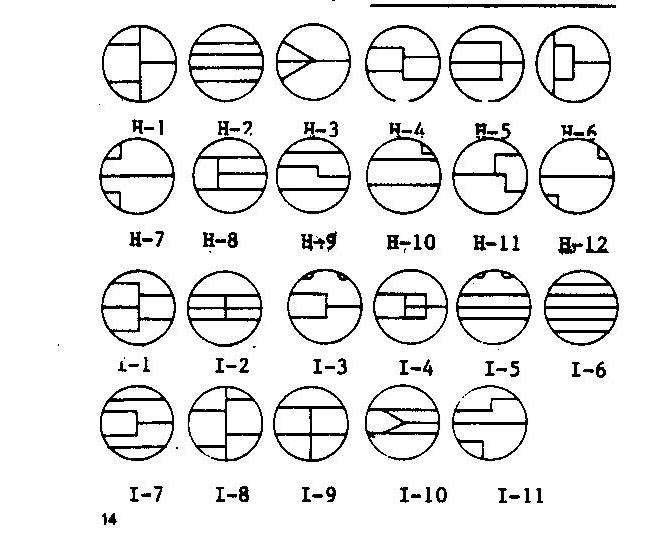

DJG with Special Shape

APPLICATION:

DJG is particularly suitable for sealing flat surfaces of heat exchanges, gas pipes, cast iron flanges, cylinder heads of engines as well as for boilers and other vessels.By their sealing efficiently, provided by exerting strong pressure on circular rimes of the flanges, metal-jacketed gaskets can stand up to 30% deviation from the initial thickness, which is very useful in case of irregular or faulty flange rims. The chemical compatibility of the metal and the medium being sealed should be considered.

MATERIAL:

Metal material	Din Material No.	Hardness HB	Temperature (℃)	Density g/cm3
CS/Soft Iron	1.1003/1.0038	90~120	-60~500	7.85
SS304, SS304L	1.4301/1.4306	130~180	-250~550	7.9
SS316, SS316L	1.4401/1.4404	130~180	-250~550	7.9
Copper	2.0090	50~80	-250~400	8.9
Aluminium	3.0255	20~30	-250~300	2.73

Other special metal Ti, Mon 400 are also available on request.

Materials for the insert:

Flexible Graphite, ASB, Non-asb
ceramic fiber, mica etc.
