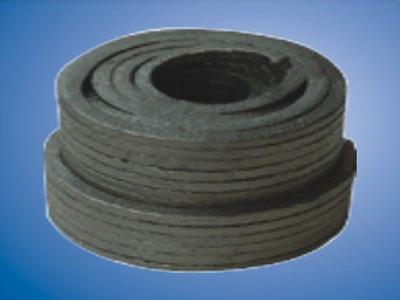

Asbestos Graphite packing

Asbestos Graphite packing is formed by interbraided method to from very dense and yet flexible packing. Each thread is impregnated into a solution with high lubrication value, the life of this packing is much then ordinary packing.
General-purpose of Asbestos Graphite packing is for high speed rotating and reciprocating spindles and static.
Graphite asbesto rubber gland packing:
Material: good asbesto cloth, asbesto thread, rubber bond and metal constitutional thread of high carbon graphite.
Use: used for seal on the valve pole and piston of pump.
Available Size :
3mm to 100mm
Graphite asbesto rubber gland packing |
Parameter |
Technical data |
Rotating |
Reciprocating |
Valves |
Pressure (MPa) |
2 ~ 15 |
Shaft speed (m/s) |
2 ~ 5 |
Temperature (°c) |
-50 ~ 300 |
PH range |
4 ~ 10 |
Density (g/cm3) |
1.1 ~ 1.3 |
MOQ |
100 kilograms |
|
