Slitting Machine for SS Hoop
Slitting Machine for SS Hoop Details

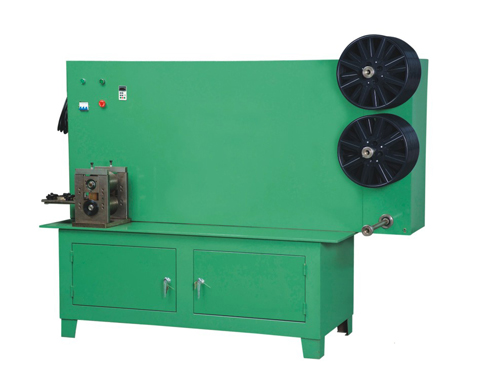

PX1230 Slitting machine is used to slit spiral wound gasket hoop (Stainless steel strip) in flat shape. The widest SS before slitting is 120mm, thickness 0.1-0.3mm, slitting size 3.6 4.8 5.0 8.0 10.0MM width for option.
One machine can produce more than 1000kgs of strip per day.
| Specification as following: |
| STYLE |
PX1230 Slitting machine for SWG HOOP (ss strip) |
| Slitting SS thickness |
0.1--0.3mm |
| SS width before Slitting |
≤120mm |
| SS strip width |
3.6 4.8 5.0 8.0 10.0MM width for option.
Standard machine package include 50pcs of plastic spool for ss strip after slitting, and one set (one size) of special design blades. |
| Total power |
2.2kw |
| Spindle motor power |
1.5kw |
| Frequency Converter |
4.0G |
| Power supply voltage |
380V/220V as request, 3 phases |
| linear speed |
0-0.4cm/s |
| Machine measurement |
2050*800*1550mm |
| Machine net weight |
500kg |
|
