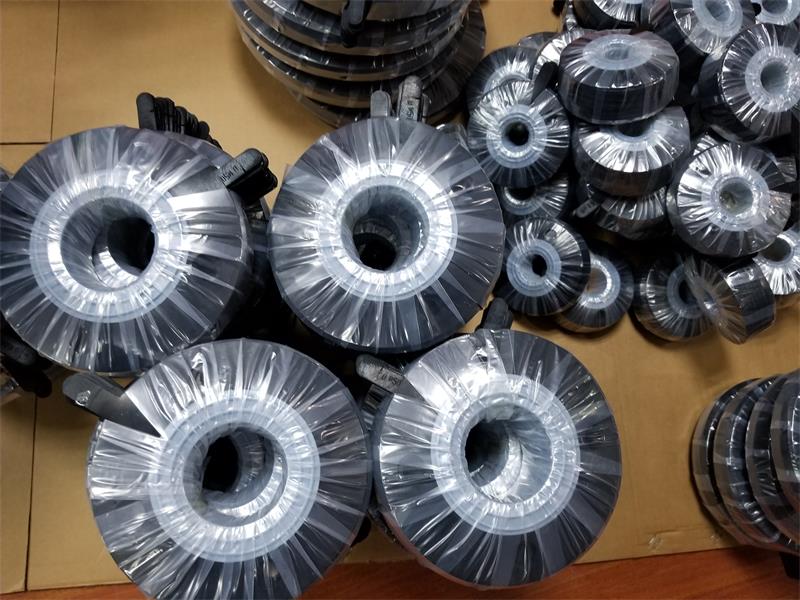

Low Torque Flange Gaskets

Low Torque Gaskets are recommended for all plastic piping systems to prevent initial flange leakage due to bolt over tightening. They are especially recommended for all Chemline solid plastic flanged body valves. The unique double convex ring design provides optimum sealing with a fraction of the bolt torque required for flat face gaskets. The PTFE and PVDF gaskets have 0.4 mm sheet material bonded to EPDM. This increases elasticity, lowering bolt torques required to seal.

features Low Torque Flange Gaskets
• Low Flange Bolt Torques Required for Positive Seal – Due to the moulded raised face – patented double convex ring design
• Ideal for Thermoplastic Piping Systems, also metal or plastic lined metal pipe systems for up to 250 psi
• High Chemical Resistance – PTFE-bonded and PVDF-bonded gaskets are suitable for extremely aggressive chemical services
• Longer Gasket Life – Because lower flange pressures are required for sealing

PTFE BONDED EPDM low torque flange gasket

SIZES: 1/2” – 24"

Standard: ANSI 150, DIN PN10/PN16, JIS 10K

TEMPERATURE RANGE: EPDM: –40° to 90°C
