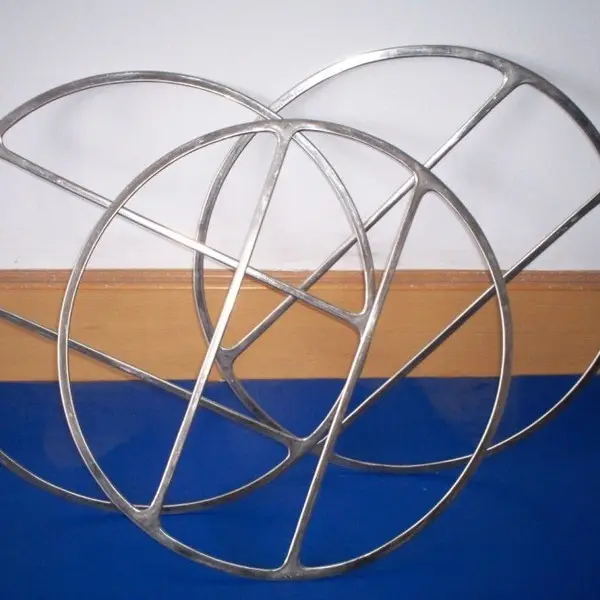

Metal jacketed gasket

Metal jacketed gasket is a hybrid of materials consisting of a metallic or non-metallic compressed fibre filler (soft filler/gasket) encapsulated by metallic outer shell. This combination offers better performance than just the gasket alone, as the metal jacket protects the filler material and at the same time withstand corrosion, higher pressure and temperature.

Metal jacketed gasket are designed for a wide range of smooth surface applications such as heat exchangers, autoclaves, columns, engines, boilers, gas mains, flanges, valve bonnets, cylinder head.

(I) SINGLE JACKETED
(II) SINGLE JACKETED OVERLAP
(III) DOUBLE JACKETED
(IV) DOUBLED JACKETED DOUBLE SHELL

Metallic category includes Soft iron, Carbon Steel, Stainless Steel, Inconel, Monel, Nickel, Aluminum, Brass, Copper etc. Non-Metallic category includes compressed fiber millboard, PTFE, Tanged insert graphite, Ceramic etc.

The types of metal jacketed gaskets Goodrich Gasket offers are:

Single Jacketed Gaskets, Filler material enclosed in a metal jacket, covering the inside & outside diameter of gasket
